GYY/5~100L

【Category】：Oil bath

【Attribute】：GYY型

【Range】：Laboratories, pharmaceutical companies, schools, for evaporation, distillation, separation of chemicals

【Description】：Gyy 5~100l high-temperature circulating oil-water bath, gyy series high-temperature circulating oil bath, provide all kinds of products from 5 liters to 100 liters. This instrument has internal and ex

Offer 4000-111-217
Distributor Atlas Service Contact
Technical consultation
Product Description
项目描述产品详情
产品介绍Gyy 5~100l high-temperature circulating oil-water bath, gyy series high-temperature circulating oil bath, provide all kinds of products from 5 liters to 100 liters. This instrument has internal and external circulation function, and can easily provide high-temperature constant temperature heat source for laboratory instruments and equipment such as single and double-layer reactors, jacketed reactors, rotary evaporators, glass reactors, vacuum reactors, etc.
产品特点1、本产品采用进口不锈钢板材料作内胆。外壳选用优质冷板静电喷塑。电热管将在油中间，加热快、热效高、耗电省、电子恒温之特点 。
2、循环泵采用全不锈钢高温磁力泵，具有性能稳定，质量可靠，无泄漏等优点。
3、数显式温度控制，操作简单，醒目。
4、数显采用PID控制，具有控温精确，温冲小的优点。
5、循环系统采用不锈钢，铜质，具有防锈，防腐等优点。
6、采用固态继电器控制电路，无触点，无明火，增加寿命。
7、注意事项： 为了提高您的使用质量、请使用（320高温导热油）。使用中要保持规定油面高度，定期换油。换油时要将旧油全部放净，并用新油冲洗内部，然后加入新油，使用中还要防止杂质进入，以免影响油的质量。

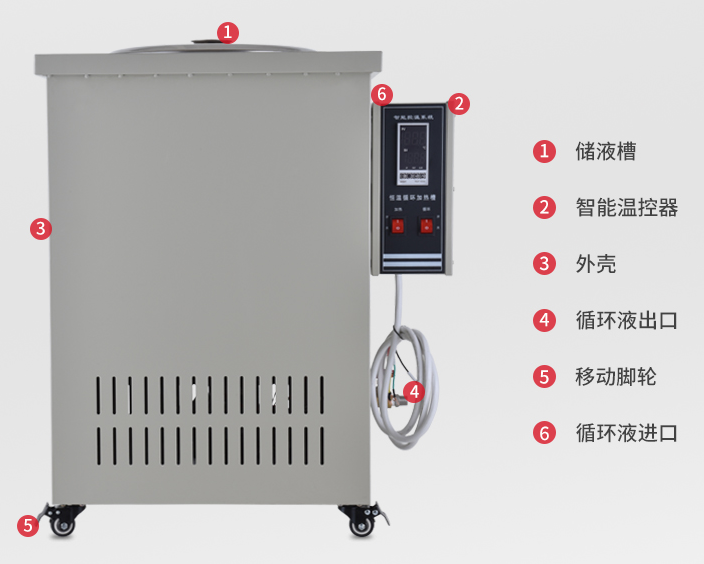

图片详解

Parameter

基

本

参

数

规格型号GYY-5LGYY-10LGYY-20LGYY-30LGYY-50LGYY-80LGYY-100L
浴锅容积5L10L20L30L50L80L100L
浴锅材质不锈钢不锈钢不锈钢不锈钢不锈钢不锈钢不锈钢
加热功率1.5KW2KW3KW4.5KW5KW7KW9KW
内循环水浴、油浴水浴、油浴水浴、油浴水浴、油浴水浴、油浴水浴、油浴水浴、油浴
外循环给外部设备提供热源给外部设备提供热源给外部设备提供热源给外部设备提供热源给外部设备提供热源给外部设备提供热源给外部设备提供热源
循环功率100W100W100W280W280W370W370W
流量20-40L/min20-40L/min20-40L/min30-50L/min30-50L/min30-50L/min30-50L/min
扬程4-6m4-6m4-6m10-12m10-12m10-12m10-12m
温控范围标准型：室温-200℃        高温型：室温-320℃标准型：室温-200℃        高温型：室温-320℃标准型：室温-200℃        高温型：室温-320℃标准型：室温-200℃        高温型：室温-320℃标准型：室温-200℃        高温型：室温-320℃标准型：室温-200℃        高温型：室温-320℃标准型：室温-200℃        高温型：室温-320℃
温度计探头PT100PT100PT100PT100PT100PT100PT100
控温方式PID智能微电脑恒温PID智能微电脑恒温PID智能微电脑恒温PID智能微电脑恒温PID智能微电脑恒温PID智能微电脑恒温PID智能微电脑恒温
温度设定范围0-400℃0-400℃0-400℃0-400℃0-400℃0-400℃0-400℃
温度测量范围-59～409℃-59～409℃-59～409℃-59～409℃-59～409℃-59～409℃-59～409℃
温度使用范围水浴：RT-99℃       油浴：RT-200℃水浴：RT-99℃       油浴：RT-200℃水浴：RT-99℃       油浴：RT-200℃水浴：RT-99℃       油浴：RT-200℃水浴：RT-99℃       油浴：RT-200℃水浴：RT-99℃       油浴：RT-200℃水浴：RT-99℃       油浴：RT-200℃
控温精度±1℃±1℃±1℃±1℃±1℃±1℃±1℃
电压220V/50HZ220V/50HZ220V/50HZ220V/50HZ220V/50HZ380V/50HZ380V/50HZ
总输出功率1600W2100W3100W4780KW5280KW

电流7.3A9.6A14.1A21.8A24A

环境温度-10～60℃
相对温度＜90%RH(非凝露）
环境压力86kPa-106kPa
循环介质水    去离子水或蒸馏水
导热油    粘稠度不低于100cSt
加热槽Φ200×200HΦ250×250HΦ300×300HΦ345×345HΦ400×400HΦ450×450HΦ500×500H
进出口阀门DN15(其他尺寸根据实际需求定制）
循环口一进一出
设备尺寸430×320×600mm440×330×630mm500×400×720mm550×450×780mm600×490×820mm

移动方式万向脚轮
进出口阀门1对
连接管斧胶管或不锈钢波纹管
